function [ax,hlines] = ploty4(x1,y1,x2,y2,x3,y3,x4,y4,ylabels)

%PLOTY4     Extends plotyy to include a third and fourth y-axis

%

% Syntax:   [ax,hlines] = ploty4(x1,y1,x2,y2,x3,y3,x4,y4,ylabels)

%

% Inputs:   x1,y1 are the xdata and ydata for the first axes' line

%           x2,y2 are the xdata and ydata for the second axes' line

%           x3,y3 are the xdata and ydata for the third axes' line

%           x4,y4 are the xdata and ydata for the fourth axes' line

%           ylabels is a 4x1 cell array containing the ylabel strings (optional)

%

% Outputs:  ax -        4x1 double array containing the axes' handles

%           hlines -    4x1 double array containing the lines' handles

%

% Example:

%           x = 0:10;

%           y1=x;  y2=x.^2;  y3=x.^3;  y4=x.^4;

%           ylabels{1} = 'First y-label';

%           ylabels{2} = 'Second y-label';

%           ylabels{3} = 'Third y-label';

%           ylabels{4} = 'Fourth y-label';

%           [ax,hlines] = ploty4(x,y1,x,y2,x,y3,x,y4,ylabels);

%           leghandle = legend(hlines, 'y = x','y = x^2','y = x^3','y = x^4',2);

%

% See also Plot, Plotyy

% Based on plotyyy.m (available at www.matlabcentral.com) by :

% Denis Gilbert, Ph.D.

% Check inputs

msg=nargchk(8,9,nargin);

error(msg);

% Create figure window

figure('units','normalized',...

'DefaultAxesXMinorTick','on','DefaultAxesYminorTick','on');

%Plot the first two lines with plotyy

[ax,hlines(1),hlines(2)] = plotyy(x1,y1,x2,y2);

cfig = get(gcf,'color');

pos = [0.125 0.1 0.65 0.8];

offset = pos(3)/5.5;

%Reduce width of the two axes generated by plotyy

pos(1) = pos(1) + offset;

pos(3) = pos(3) - offset;

set(ax,'position',pos);

%Determine the position of the third/fourth axes

pos3 = [pos(1) pos(2) pos(3)+offset pos(4)];

pos4 = [pos(1) - offset pos(2) pos(3)+offset pos(4)];

%Determine the proper x-limits for the third and fourth axes

scale3 = pos3(3)/pos(3);

scale4 = pos4(3)/pos(3);

limx1 = get(ax(1),'xlim');

limx3 = [limx1(1) limx1(1)+scale3*(limx1(2)-limx1(1))];

limx4 = [limx1(2)-scale4*(limx1(2)-limx1(1)) limx1(2)];

%Create ax(3) & ax(4)

ax(3) = axes('Position',pos3,'box','off',...

'Color','none','XColor',cfig,'YColor','r',...

'xtick',[],'xlim',limx3,'yaxislocation','right');

ax(4) = axes('Position',pos4,'box','off',...

'Color','none','XColor',cfig,'YColor','k',...

'xtick',[],'xlim',limx4,'yaxislocation','left');

%Plot x3,y3,x4,y4

hlines(3) = line(x3,y3,'Color','r','Parent',ax(3));

hlines(4) = line(x4,y4,'Color','k','Parent',ax(4));

%Put ax(2) on top;

axes(ax(2));

%Set y-labels;

% if nargin==9

% set(cell2mat(get(ax,{'ylabel'})),{'String'},{ylabels{:}}');

for i =1:length(ylabels)

set(get(ax(i),'ylabel'),'string',ylabels{i})

end

end

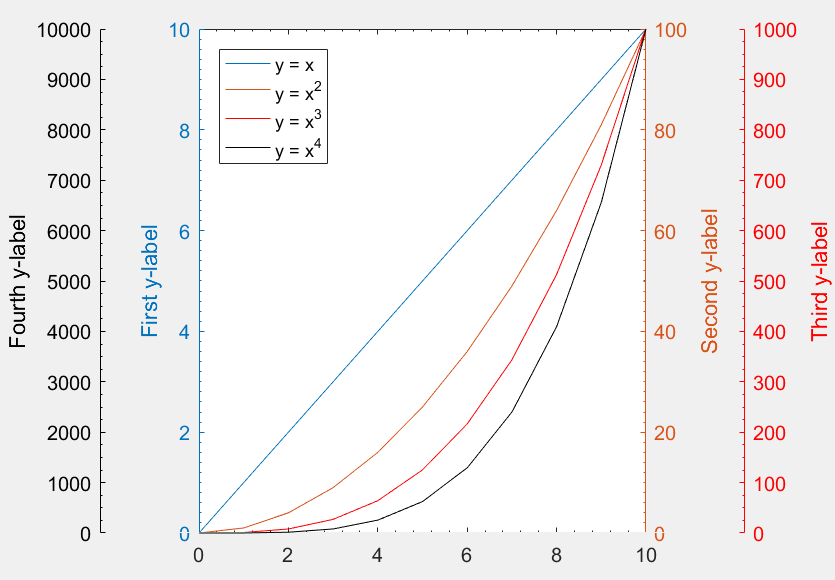

x = 0:10;

y1=x;  y2=x.^2;  y3=x.^3;  y4=x.^4;

ylabels{1} = 'First y-label';

ylabels{2} = 'Second y-label';

ylabels{3} = 'Third y-label';

ylabels{4} = 'Fourth y-label';

[ax,hlines] = ploty4(x,y1,x,y2,x,y3,x,y4,ylabels);

leghandle = legend(hlines, 'y = x','y = x^2','y = x^3','y = x^4','location','northwest');
