1 详细代码
-
版本号：matlab2016a
-
详细链接：https://www.mathworks.com/matlabcentral/fileexchange/9016-addaxis
-
备注：我的版本号是matlab2016a,对于此工具箱稍微做了修改，需要的到github下载
2 测试用例-example
x = -10:0.5:10;
y1 = x.^2;
y2 = x.^3;
y3 = sin(x);
y4 = cos(x);
addaxis(x, y1,'-.','linewidth',2)
addaxis(x, y2,'-*','linewidth',2)
addaxis(x, y3,'-o','linewidth',2)
addaxis(x, y4,'--','linewidth',2)
addaxislabel(1,'one');
addaxislabel(2,'two');
addaxislabel(3,'three');
addaxislabel(4,'four');
addaxislabel(5,'five');
legend({'y1=x^2','y2=x^3','y3=sin(x)','y4=cos(x)'})

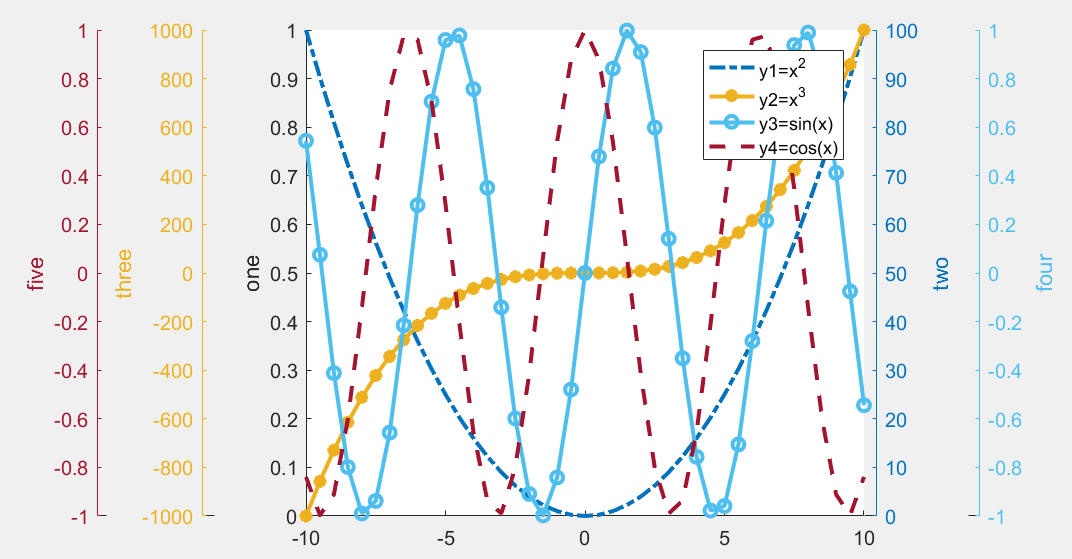

3 结果显示
